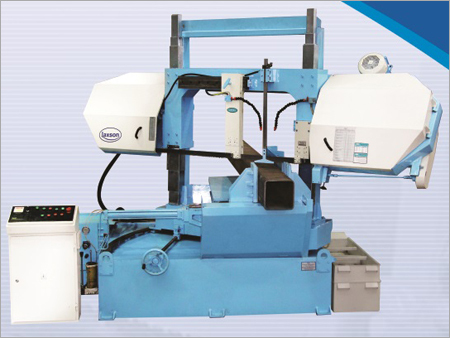

Miter Cutting Machine

Miter Cutting Machine
Miter Cutting Machine
Send Inquiry
Product Code : LK-601DCM
Product Description

Having rich experience of more than 7 decades, we have successfully been engaged in manufacturing, exporting and supplying Miter Cutting Machine. The offered machine is manufactured under the vigilance of our experienced professionals using supreme quality components and innovative techniques. This machine is commonly used in factories and industries workshop to cut the metal job piece at different angles. In addition, the provided Miter Cutting Machine can be purchased from us in different technical specifications at market leading prices.


Features:

  • PLC control plane
  • Accurate angular movement
  • Long functional life
  • Easy to adjust cutting angle



Miter Cutting Machine (for metal sections cutting)

STANDARD FEATURES

  • Saw head movement on heavy duty LM Guide
  • The swivel is directly above the intersection of the saw blade and the fix vice jaw so that there is a Datum measuring point which does no change with the miter angle
  • Swiveling cutting head & stationary work table with easy cutting angle setting
  • Suitable to cut angles in range of 90° to 45° degree
  • Accurate angular movement. (least count-0.1°degree)
  • Steeples cutting pressure regulation through weight of the heavy and rigid saw frame and the fine tuning pending on cross - section by hydraulic damping cylinder
  • Rapid lowering of the saw frame via button until material edge
  • Free-standing control panel
  • Precise saw blade carbide roller guidance
  • Integrated chip collection tray

Specification

LK-241 DCM (Mitering)

LK-341 DCM (Mitering)

LK-421 DCM (Mitering)

LK-601 DCM (Mitering)

Cutting Capacity Round & Square 45° degree

240 mm

340 mm

450 mm

610 mm

Round & Square 90° degree

240 mm

340 mm

450 mm

610 mm

Cutting Capacity Rectangle 45° degree

240 x 240

340 x 340

450 x 450

610 x 610

(W x H) mm 90° degree

300 x 240

400 x 340

500 x 450

700 x 610

Blade Dimensions (mm)

3760 x 27 x 0.9

5450 x 34 x 1.1

6270 x 41 x 1.3

7860 x 54 x 1.6

Blade Linear Speed (mtr/min)

20/ 30/ 40/ 50/ 75

20/ 30/ 40/ 50/ 75

20/ 30/ 40/ 50/ 75

20/ 30/ 40/ 50/ 75

Power Req. (kw/h.p.) Saw Drive

2.2/ 3.0/ 1440 RPM

3.7/ 5.0/ 1440 RPM

3.7/ 5.0/ 1440 RPM

5.5/ 7.5/ 1000 RPM

(440 V AC, 50 Hz, 3 Phase) Hydraulic Drive

0.75/ 1.0/ 1440 RPM

0.75/ 1.0/ 1440 RPM

0.75/ 1.0/ 1440 RPM

1.1/ 1.5 / 1440 RPM

Coolant Pump

0.12/ 0.15/ 2800 RPM

0.12/ 0.15/ 2800 RPM

0.12/ 0.15/ 2800 RPM

0.12/ 0.15/ 2800 RPM

Wire Brush Motor

0.18/ 0.25/1440 RPM

0.18/ 0.25/1440 RPM

0.18/ 0.25/1440 RPM

0.18/ 0.25/1440 RPM

Hydraulic Tank Capacity (Ltr)

60

60

60

80

Coolant Tank Capacity (Ltr)

60

60

60

80

Apx. Dimensions (L x w x H) (mtr.)

2.2 x 1.1 x 1.5

2.5 x 1.3 x 1.8

3 x 1.5 x 2

3.5 x 1.7 x 2.2

Apx. Weight (kg)

1200

1500

1800

2300
